KONE E MONOSPACE®

An economical elevator for residential buildings

Product information

Description

KONE E MonoSpace is an economical machine-room-less elevator solution designed especially for residential buildings. Clear specifications and standardized offering make it easy to choose and install the solution.

Specifications

Description: Machine room-less elevator for new and existing buildings
Speed: 1.75 m/s
Max. travel: 75 m
Max. load: 1000 kg
Max. persons: Up to 13
Max. elevators in group: 3

Design

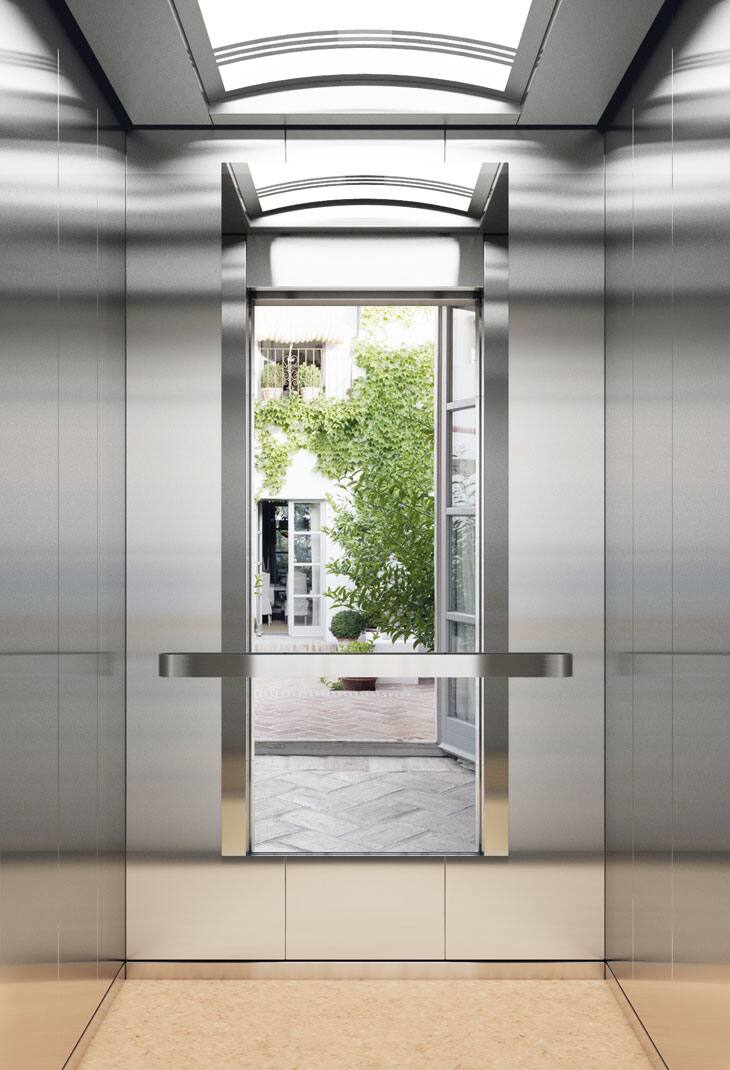

Eleven car wall materials, eight ceiling and five handrail options.
Durable and cost-efficient KONE KDS 220 signalization, award-winning KSS 280 signalization
A selection of optional features for further enhancing elevator safety, accessibility, eco-efficiency and performance

Highlight

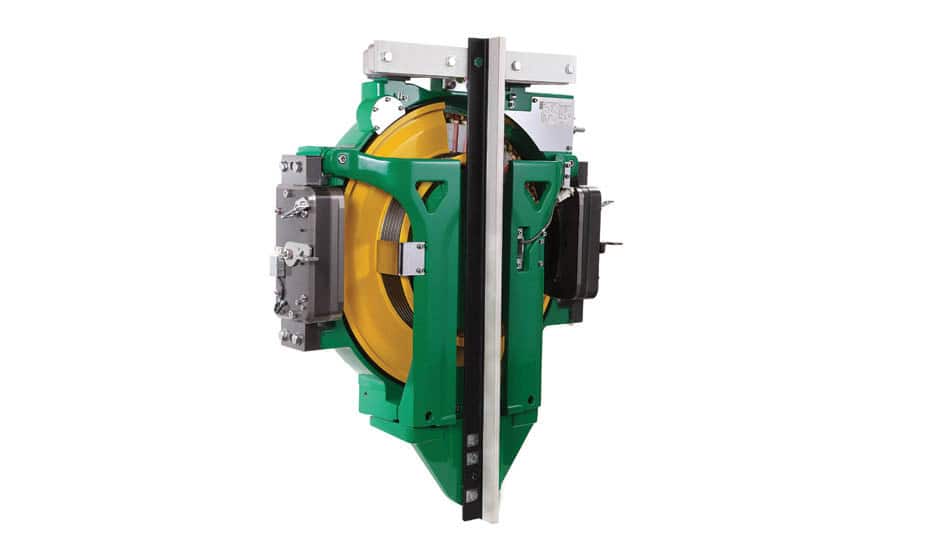

KONE EcoDisc®

The KONE EcoDisc hoisting motor is the heart of KONE’s elevator solutions. The revolutionary solution launched in 1996 has a proven track record of more than 800,000 units installations worldwide. With the constant improvements to the solution, the renewed KONE EcoDisc provides

More energy-efficient technology: The new innovative copper winding system reduces the amount of energy lost as heat.
More compact than before: The updated KONE EcoDisc is also more space efficient and requires less height and width. This frees up valuable floor space or allows for a more spacious, higher-capacity car.
Better ride comfort: The V3F variable-frequency drive ensures a smooth, comfortable ride with superior acceleration/ deceleration profile, better floor-to-floor travel times, and precision leveling.

Contact us for a cost estimate

Tools and downloads

KONE Elevator Toolbox

Save time in the planning and design phase by specifying your elevator solution online and creating a detailed specification as well as customized CAD drawings BIM models.

KONE E MonoSpace®

The KONE E MonoSpace is an economical solution for providing reliable, efficient, and comfortable transport between floors in residential buildings.

KONE KSS280 signalization

Our functional signalization family for residential buildings combines simple features, good visibility, and easy accessibility with sophisticated design.

More Tools And Downloads

Elevator solutions

Product	Description + segment	Machine room	Max. speed	Max. travel	Max. load/persons
KONE E MiniSpace	Economical elevator for residential buildings	Yes	2.5 m/s	120 m	1000 kg/ up to 13 persons
KONE N MiniSpace	Versatile elevator for mid-rise residential buildings	Yes	3.0 m/s	150 m	1350 kg/ up to 18 persons
KONE S MiniSpace	High-performance elevator for mid and high-rise buildings	Yes	3.0 m/s	150 m	1600 kg/ up to 21 persons
KONE MiniSpace	High-speed elevator for high-rise buildings	Yes	4.0 m/s	210 m	2000 kg/ up to 26 persons
KONE Highrise MiniSpace	High-speed elevator for high-rise buildings	Yes	10.0 m/s	400 m	2000 kg/ up to 26 persons
KONE E MonoSpace	Economical elevator for residential buildings	No	1.75 m/s	75 m	1000 kg/ up to 13 persons
KONE N MonoSpace	Versatile elevator for low and mid-rise residential and commercial buildings	No	2.5 m/s	90 m	1600 kg/ up to 21 persons
KONE S MonoSpace	Highly flexible elevator solution for demanding commercial buildings	No	3.0 m/s	150 m	2500 kg/ up to 36 persons
KONE TranSys	Adaptable passenger and goods elevator solution for public transport, retail, hospital buildings	No	1.0 m/s	40 m	4000kg/ up to 53 persons
KONE Bed elevator	Elevator designed especially for hospitals	Yes & No	2.0 m/s	75 m	2000 kg/ up to 26 persons
