KONE MonoSpace® DX elevator for full replacement

KONE MonoSpace® DX for full replacement

By replacing your existing elevator with the KONE MonoSpace® DX you can redefine the elevator experience with connectivity for improved people flow and a new and inspiring user experience that really connects – on every level.

Powered by the compact, energy-efficient KONE EcoDisc® hoisting motor, elevator modernization with the KONE MonoSpace® DX saves valuable space in your building by completely removing the need for a machine room. This means that elevator replacement can free up valuable space for more profitable purposes.

Key features

img_KONE-DX-Class-elevators-end-users-877x1070
  • Digital connectivity - Future-proof your building with an elevator that offers new digital services and solutions enabled by cloud connectivity and based on KONE APIs.
  • Best-in-class eco-efficiency – Save energy and cut your building’s carbon footprint with a machine room-less elevator that offers eco-efficient hoisting, high-efficiency regenerative drive, long-lasting LED lighting, and energy-saving standby operation.

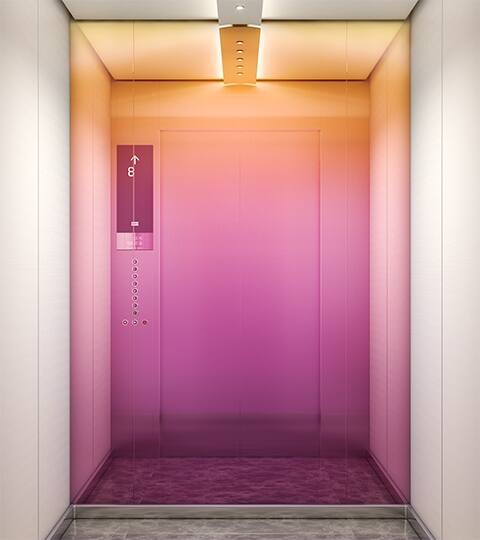

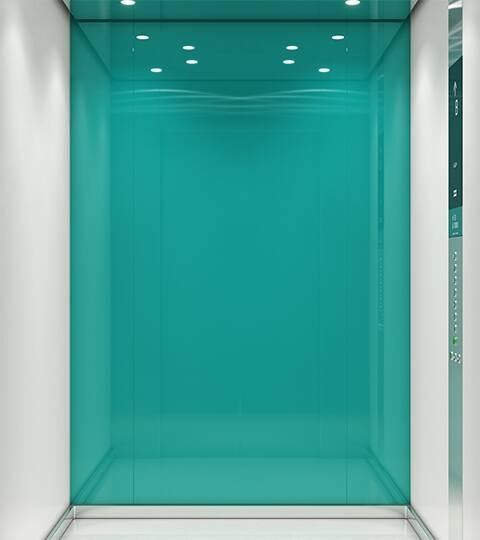

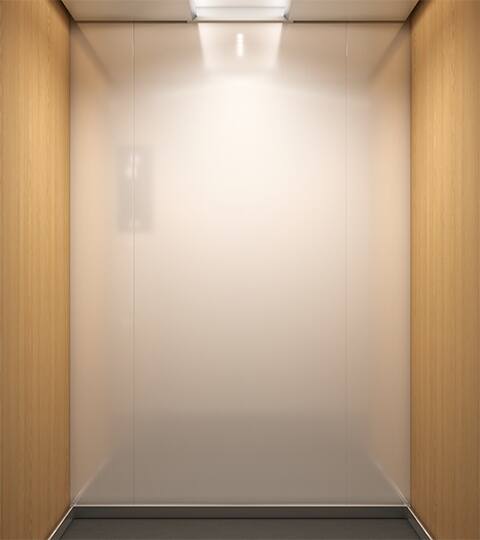

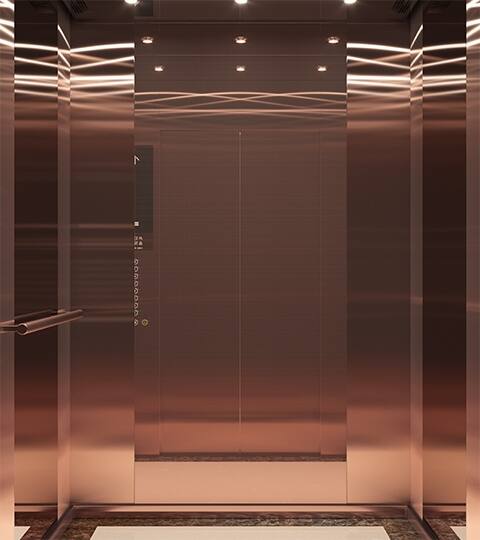

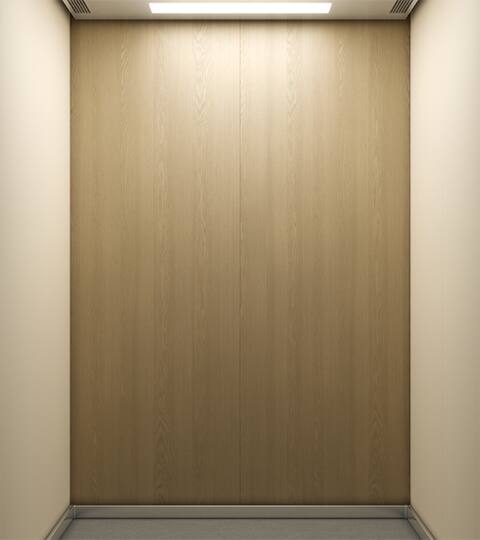

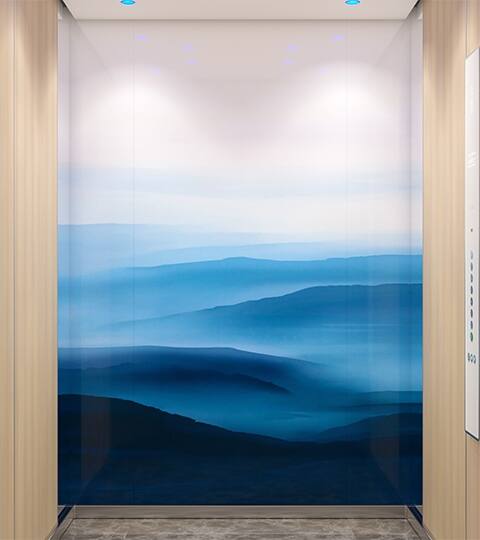

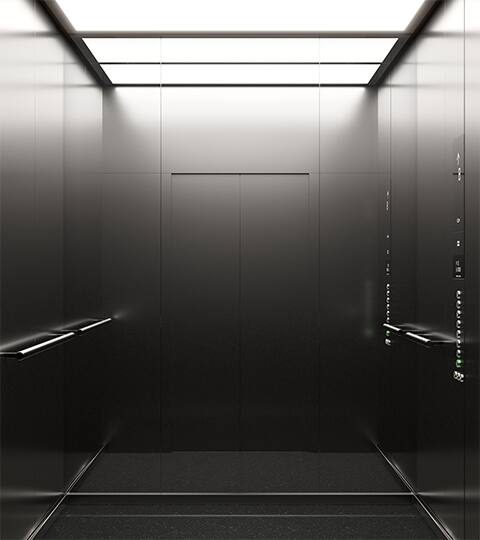

  • A redefined elevator experience – Create a memorable and inspiring elevator experience for tenants and visitors with our new material, lighting, and signalization options.
  • Compliance you can rely on – With the KONE MonoSpace® DX you can rest assured that your building’s elevators are compliant with all relevant codes and regulations, including accessibility, vandal-resistance, and operation during a fire.
  • Easy to upgrade – With easy digital integration and the possibility to upgrade in the future as your needs change, you’re all set to add new connected services as and when you need them.
  • Space efficiency – Because everything is installed inside the elevator shaft, you can reclaim the machine room as rentable floor space. You can also improve accessibility with a bigger elevator car that has wider-opening doors – all in the same shaft space.

KONE MonoSpace DX solutions

Check the specifications below to see which KONE MonoSpace DX solution is right for your building.

SOLUTIONDESCRIPTIONMACHINE ROOMMAX. TRAVELMAX. SPEEDMAX. LOAD / PERSONSMAX. GROUP SIZE
KONE S MonoSpace DXFlexible passenger elevator for commercial buildings with demanding people-flow requirements.No120 m or 48 floors3.0 m/s2,500 kg/up to 33 persons6
KONE N MonoSpace DX
Versatile passenger elevator mid-rise residential and commercial buildings.No120 m or 48 floors2.5 m/s1,600 kg/up to 21 persons4
KONE E MonoSpace DX
Cost-efficient passenger elevator for residential buildings.No75 m or 28 floors1.75 m/s1,000 kg/up to 13 persons3

KONE MonoSpace® DX elevator for full replacement

KONE MonoSpace® DX elevator for full replacement

Your partner for smart, sustainable building

img_asset_management-668x376

BUILD TOGETHER

We support you at every step of the elevator modernization process, from planning and installation to handover. And with on-going maintenance and monitoring support, we’re there throughout your building’s life cycle.

img_sustain-trusted-partner_668x376

BUILD GREENER

Our elevators use sustainable materials and include a wide range of energy-efficiency enhancements, helping you to obtain green building certifications such as LEED and BREEAM.

img_sustainability-building_668x376

BUILD SUSTAINABLY

Our solutions and services help you to achieve your eco-efficiency goals during every phase of the building life cycle, from design and construction to maintenance and modernization.

Plan and design your elevator today

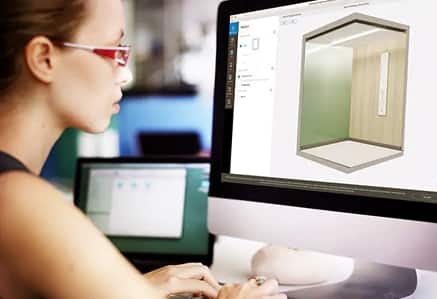

KONE Car Designer

KONE Car Designer

With our digital design tool you can create your own unique elevator car interior by combining materials, lighting, and accessories – and then bring your vision to life with 3D modelling.

Related topics

Other KONE elevators for full replacement

KONE MiniSpace™ DX

High-speed passenger elevator with compact machine room for mid-rise and high-rise buildings.

  • MAX. TRAVEL 210 m
  • MAX. LOAD 26 persons
  • MAX. SPEED 4.0 m/s
  • CONNECTIVITY YES

KONE TranSys™ DX

Adaptable and durable goods and passenger elevator for public transport, retail, and hospital buildings.

  • MAX. TRAVEL 40 m
  • MAX. LOAD 4,000 kg
  • MAX. SPEED 1.0 m/s
  • CONNECTIVITY YES
